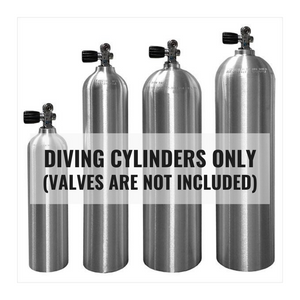

Aluminum Cylinders

DC 00019L-BNC WOV-C

MVR2,144.00
Unit price per

Price includes 8% GST

Please note that VALVES ARE NOT INCLUDED but can be installed upon separate request.

Quality you can rely on. Catalina cylinders has been manufacturing aluminum SCUBA cylinders for over 30 years, and today is a leading supplier in the global SCUBA cylinder market.

SCUBA Specifications

3300 SERIES – 3300 PSI (228 BAR)

3000 SERIES – 3000 PSI (207 BAR)


PART #	WATER CAPACITY			DIAMETER		LENGTH		WEIGHT		BUOYANCY LBS
capacity cu ft*	cu in	lbs	liters	in	mm	in	mm	lbs	kgs	full	500 psi	empty

S80	678	24.5	11.1	7.25	184.2	25.9	658	31.3	14.2	-1.6	2.8	4.1
S63	552	19.9	9	7.25	184.2	21.7	551	26.9	12.2	-2.8	0.7	1.8
S53	464	16.8	7.6	7.25	184.2	19.2	488	25.1	11.4	-3.8	-0.8	0.1
S45	394	14.2	6.4	6.89	175	17.7	450	20.3	9.2	-2.8	-0.3	0.5
S40	350	12.7	5.8	5.25	133.4	25.4	645	16.2	7.3	-1.5	0.7	1.4
S30	263	9.5	4.3	5.25	133.4	19.9	505	13.6	6.2	-2.4	-0.7	-0.2
S19	166	6	2.7	4.38	111.3	17.7	450	7.8	3.5	-1.5	-0.4	-0.2
S13	114	4.1	1.9	4.38	111.3	12.8	325	5.7	2.6	-1.8	-1	-0.9

Other Information

Specification: DOT-3AL & TC-3ALM designed – ISO design cylinders are available

Alloy: Manufactured from high strength aluminum alloy 6061-T6

Threads: -Standard 3/4-14 NPSM

Finish: Shot blasted, fully brushed and powder coat finishes available

Please note that VALVES ARE NOT INCLUDED but can be installed upon separate request.

We Also Recommend

Thermo Pro Valve VA200-33N 3300 psi EANx

Thermo Pro Valve VA200-30N 3000 psi EANx

Sold Out

Cylinder Boot for 12-20L Steel Cylinder

Cylinder Protection Net, 15L Steel Cylinder

HDVB232 Basic Valve M25x2, DIN 232 Bar Oxygen Compatible


PART #	WATER CAPACITY			DIAMETER		LENGTH		WEIGHT		BUOYANCY LBS
capacity cu ft*	cu in	lbs	liters	in	mm	in	mm	lbs	kgs	full	500 psi	empty

C80	625	22.6	10.3	7.25	184.2	25.5	648	34.7	15.7	-5.8	-1.3	0
C100	807	29.2	13.2	8	203.2	26.5	673	42	19.1	-5.2	0.6	2.2
